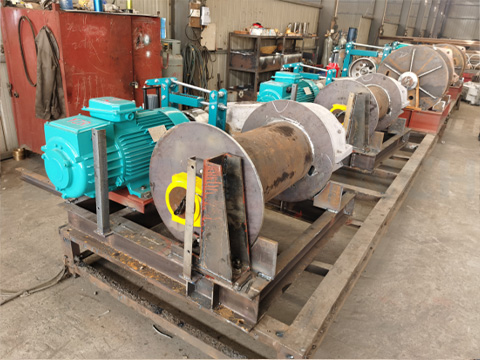

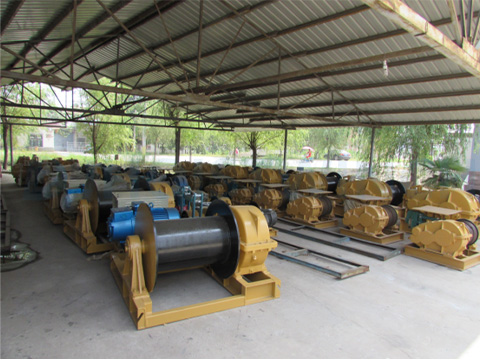

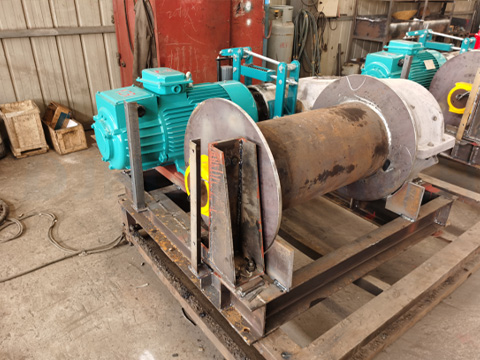

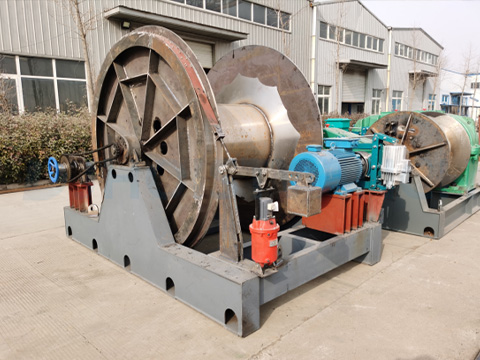

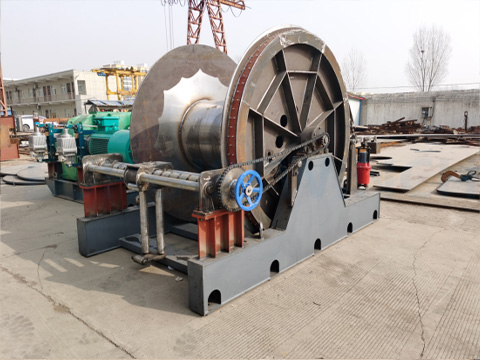

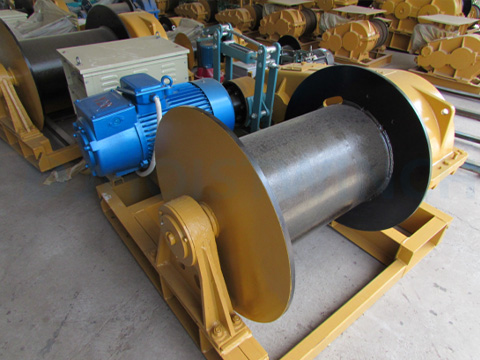

JK Type Electric Winch

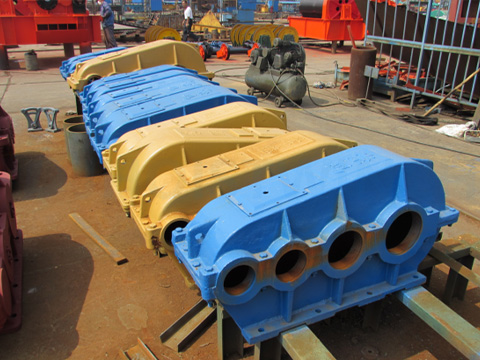

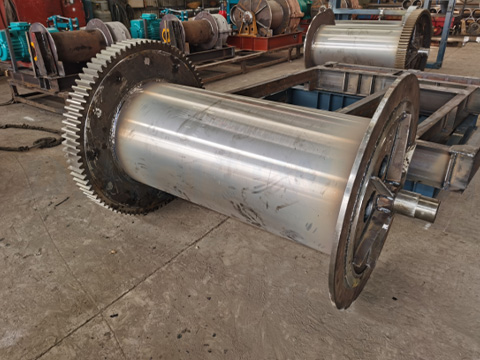

The JK type high-speed electric winch is a lifting device driven by an electric motor, operating at a wire rope rated speed of approximately 30 meters per minute. The "JK" in its model designation stands for "high-speed winch." This equipment mainly consists of an electric motor, coupling, enclosed gear reducer, and drum. It features a compact structure and flexible operation. It is widely applicable in construction, railways, factories, mines, bridges, and other applications, suitable for vertical lifting or horizontal dragging of heavy objects on trusses.

JK Type Electric Winch Specifications

Features

JK high-speed winches are mainly divided into two types: manual and electric. Manual control series: Typically controlled by a manual joystick or button, with a simple structure and low cost. Electrically controlled series: Controlled by an electrical system, making operation easier and safer, and enabling remote control. Compared to slow-speed electric winches, the JK series' core advantage lies in its faster operating speed, effectively improving material handling and traction efficiency. Simultaneously, its design typically features a compact size and light weight, facilitating transfer and installation between different construction sites.

Applications

Our JK model electric winch is widely used in situations requiring rapid and frequent lifting or traction, such as:

Construction: Vertically lifting materials such as mortar and bricks at construction sites.

Factory & Mining: Horizontal or inclined towing and installation of equipment in workshops and mining areas.

Road & Bridge Engineering: Heavy lifting and traction operations at bridge and railway construction sites.

Some Tips For JK Electric Winch Operation

1. Confirm that the winch type, applicable scope, working class, rated load, rated speed, rope capacity, etc., meet the usage conditions, and strictly prohibit overloading.

2. Connect the power supply and rotate the cam controller handwheel in the desired direction until the motor runs stably before moving to the next position, up to the highest gear.

3. When using the lifting electrical equipment, the cam controller cannot adjust the speed; it can only be used for switching resistors for buffer starting. It cannot be operated at low gears, and the electrical equipment should be checked for moisture protection regularly.

4. When operating a winch, the wire rope must not drag on the ground. Support rollers or grooved pulleys can be installed if necessary. When the wire rope crosses a passageway, protective devices should be installed, and it is forbidden for people or vehicles to step on it or run over it. Personnel are strictly prohibited from crossing running wire ropes or walking in front of winches, and it is strictly forbidden to use winches to transport construction personnel.

5. When using multiple winches for hoisting, their traction speed and lifting capacity must be the same, and they must be operated under unified command, with unified actions and synchronized operation.

6. If any mechanical malfunction, abnormal noise, brake failure, or a sharp rise in bearing temperature is observed during winch operation, the machine should be stopped immediately for inspection and repair.

7. The wire rope on the drum should be neatly arranged. If overlapping or oblique winding is found, the machine should be stopped immediately. It is strictly forbidden to step on or pull the wire rope while it is rotating.

8. When the winch is carrying a heavy load, it is strictly forbidden to use the stop device for braking. The brakes must be applied gradually with increasing force. Excessive force will damage the machine.

9. After work, the heavy load must be placed on the ground; it must not be left suspended in the air.

Finally Words

In summary, if your job mainly involves moving large quantities of construction waste, sand, gravel, and earthwork quickly, or performing general horizontal traction, JK offers greater efficiency. Dejun has more than 30 years of experience in the winch field, and we have enough confidence to provide the top-quality winch and a suitable solution. If you have any questions, contact us freely; our team is always here!
