Rated Load: 10-100 (KN)
Rated Speed: 8-15 m/min
Drum Capacity: 100-350 meters
Rope Diameter: φ9-φ30 mm
JM type electric winches are lifting devices powered by an electric motor and achieve stable low-speed operation through gear reduction. Their rated speed is typically ≤20m/min. Their core advantages lie in precise control and smooth lifting, making them particularly suitable for lifting large and medium-sized equipment requiring precise winding or alignment. In China, we are a leading supplier and manufacturer of electric winches. Besides the JM type electric winches, we have other electric winch types for your choice. Moreover, our electric winches have been sold to over 100 countries and regions all over the world. If you want to order an electric winch, but do not know how to choose. Please feel free to contact us and send us your requirements, and we will customize it based on your needs.
| Item | Electric Winch |
| Type | JM |
| Rated Load | 10-100 (KN) |
| Rated Speed | 8-15 m/min |
| Drum Capacity | 100-350 meters |
| Rope diameter | φ9-φ30 mm |
| Motor Type | Y112M-6, Y132M2-6, Y160M-6, YZR160M-6,YZR160L-6, YZR180L-6, YZR200L-6 |
| Motor Power | 3-22 KW |
| Brand | Dejun |
| Payment | TT/LC |

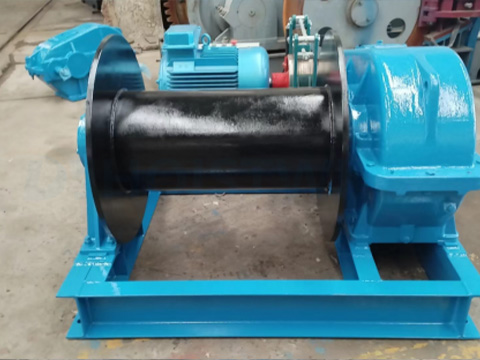

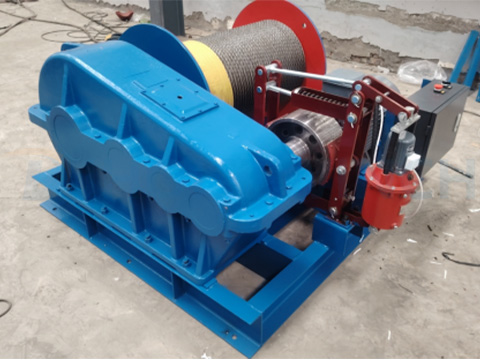

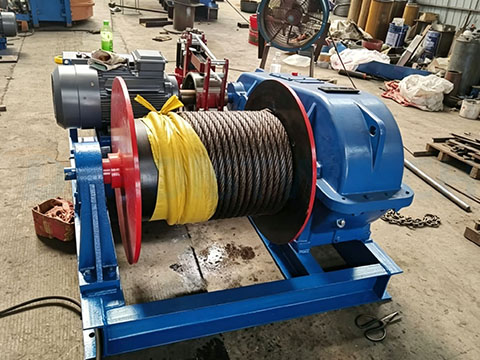

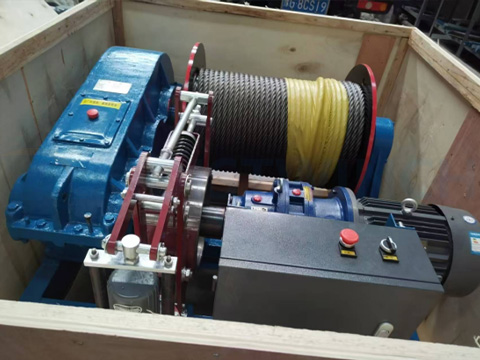

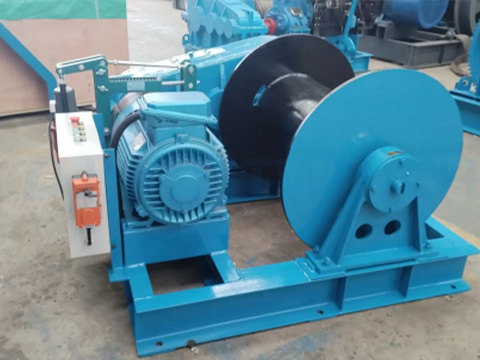

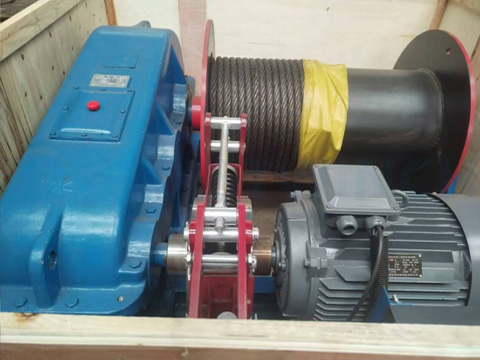

The JM electric slow-speed winch mainly consists of a power source, transmission and reduction, and braking and winding:
Power Source: our electric winches usually use a YZR or Y-series as the electric motor. Also, the electric motor can be customized.
Transmission and Reduction: The motor power is transmitted to a three-stage enclosed gear reducer via a flexible coupling. This is key to achieving "slow speed" and "high torque" output, effectively reducing the output speed.
Braking and Winding: After reduction, the drum is driven to rotate via a jaw coupling, and an electromagnetic brake is used to achieve safe and sensitive braking. The wire rope is neatly arranged on the drum, and winding the wire rope completes traction or lifting.
The stability and precision of the JM slow-speed electric winch make it indispensable in the following scenarios:
1. Large Equipment Installation: Precision installation and dismantling of large machinery, steel structures, or concrete components in factories and mines.
2. Road and Bridge Construction: Used for hoisting and positioning components in large-scale projects such as bridges, ports, and docks.
3. Prestressed Tensioning and Cold Drawing of Reinforcing Steel: Used in building construction for precise control of cold drawing of reinforcing steel or tensioning of prestressed tendons.
4. Material Traction: Used for dragging and unloading heavy objects horizontally or at an angle.
JM type electric winches are frequently used for precision lifting, making safe operation paramount:
1. Solid Anchoring: Before use, the winch must be reliably anchored using bolts, crossbeams, stakes, or counterweights to prevent slippage or overturning during operation.
2. Wire Rope Management: Wire ropes must be neatly arranged. It is strictly forbidden to step on or pull the wire rope while it is rotating. At least three safety turns of wire rope must be retained on the drum. Wire ropes that meet the scrapping criteria (e.g., more than 10% broken wires within one pitch, diameter wear exceeding 40%, severe corrosion) must be replaced immediately.
3. Overloading Prohibited: Strictly adhere to the rated tensile force during operation.
4. Standardized Operation: Operators must be professionally trained and certified. No one may cross the wire rope during operation. Operators must not leave the area after lifting a load. In case of a sudden power outage, immediately disconnect the power supply and lower the load to the ground.
In summary, when your work requires high precision, or when you are lifting delicate, fragile, or high-value goods, you should choose the JM series without hesitation. For example, when installing large machinery, bridge components, or assembling precision structures, its smooth and controllable micro-motion capability can ensure safety to the greatest extent. Dejun has more than 30 years in the winch field, and we have enough confidence to provide the top quality hoist and a suitable solution. If you have any questions, contact us freely; our team is always here!
FAQ
Q: What information should you provide in order to get an accurate quote and the best design?
1. Pulling force
2. Speed
3. rope capacity
4. Horizontal pull, vertical pull, or slope pull
5. Use the environment and so on
Q: How many operations can I choose?
Wireless remote control and wired handle with buttons, however, it can also be equipped with a cab according to the customer's personal operation needs.
Q: Can you quote the price of spare parts for the electric winch?
Yes, as a winch manufacturer, we can provide you with relevant spare parts such as motors, cranes, reels, etc.
Q: Can the electric lifting winch be tilted?
Yes, our electric winch can be pulled horizontally, tilted, and lifted vertically.
Q: My request is very special, can you customize an electric winch for me?
Yes, our company is a high-tech enterprise specializing in mechanical research and development and manufacturing, we can design and customize according to your requirements.
Q: What is the minimum order quantity?
A set;
Q: How long does your delivery time take? If we need it urgently, can you make delivery as soon as possible?
Within 10/25/40 days after receipt of the advance payment; the exact period should be based on detailed requirements;
After we confirm the parameters and sign the order, we will give priority to urgent orders to meet your needs;
Q: How do I pay?
We accept T/T bank transfers, L/C, PayPal, and Alibaba Pay.
Looking forward to hearing from you
Contact us for any information you need or for a quote, you can contact our sales team directly or complete the form below, we will reply you promptly.
