The air hoist is an ideal piece of lifting equipment for use in an explosion-proof environment. Especially, the fixed-type pneumatic hoist is very hot-selling in the lifting industry. Recently, a Brazilian client ordered 5 sets of Dejun hoists for their factory. As we all know, the air power hoists can be divided into fixed-type air hoists and trolley-type air hoists. The hoist types can usually be customized according to your needs. This client wants to buy several sets of hoists to lift heavy objects at a fixed position. Consider that they only lift lightweight raw material, then they are suitable for a fixed-type air hoist with a small capacity. At last, they purchased three sets of 1-ton fixed-type air hoists and two sets of 2-ton fixed pneumatic hoists. And now, these hoists were shipped to Brazil. Apart from the fixed type air hoists, we also produce and sell trolley air hoists, electric chain hoists, wire rope hoists, etc. For any needs, please feel free to contact us.

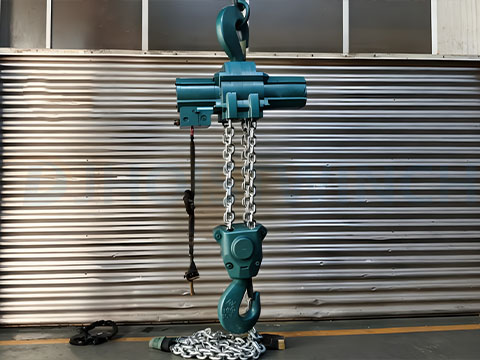

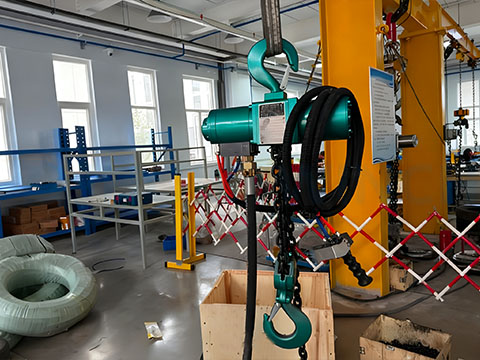

| Item | 1 ton Fixed Type Air Hoist | 2 tons Fixed Type Pneumatic Hoist |
| Order Quantity | 3 sets | 2 sets |
| Lifting Height | 20 meters | 20 meters |
| Full Load Lifting Speed | 5.5 m/min | 2.7 m/min |
| No Load Lifting Speed | 11 m/min | 5.5 m/min |
| Full Load Descent Speed | 11 m/min | 5.5 m/min |
| Full Load Air Consumption | 1.2-1.5 m³/min | 1.2-1.5 m³/min |
| Working Pressure | 6 bar | 6 bar |
| Motor Power | 1kw | 1kw |
| Chain Diameter | 7*21 mm | 7*21mm |
| Chain Number | 1 fall | 2 falls |
| Full Load Lift Noise | 75 dB | 75 dB |
| Full Load Descent Noise | 78 dB | 78dB |
| Package | Standard Wooden Case | Standard Wooden Case |
As the name suggests, fixed type pneumatic hoists are lifting devices that use compressed air as the power source. They are driven by pneumatic motors to lift, lower, and horizontally move heavy objects. It mainly consists of pneumatic motors, reducers, drum assemblies, braking systems, chains or steel cables, and control devices. The pneumatic motor converts the pressure energy of compressed air into mechanical energy, which is then reduced in speed and increased in torque by the reducer to drive the drum to rotate, thereby achieving the retraction and extension of the chain or steel cable and lifting and lowering the heavy object. The braking system ensures that the hoist can be reliably braked when the air supply is cut off, preventing the heavy object from sliding down. Compared with traditional electric hoists, fixed-type air hoists have many advantages, such as explosion-proof, no sparks, corrosion resistance, smooth operation, and low noise. Therefore, they are widely used in industries with extremely high safety requirements, such as coal mines, chemical plants, oil fields, and food processing.
1. Outstanding safety, suitable for dangerous environments: Pneumatic hoists use compressed air as the power source and do not generate electrical sparks or high temperatures during operation, fundamentally eliminating the risk of fire or explosion caused by electrical sparks. Therefore, they can be safely used in dangerous places with flammable and explosive gases or dust, such as coal mines, chemical workshops, and oil and gas fields. This is the most significant advantage over electric hoists.
2. Strong environmental adaptability, resistant to harsh conditions: our air-operated hoists have a high tolerance for working environments and are almost unaffected by humid, dusty, high, or low temperature conditions. They can operate stably even in open-pit mines, coastal salt spray environments, or dusty workshops, and their components are less likely to fail due to rust from moisture or clogging by dust.
3. Flexible operation, precise control: Speed can be easily adjusted by regulating the air intake to smoothly control the lifting and lowering speed of heavy objects. This is especially suitable for scenarios with high requirements for hoisting accuracy, such as mold assembly and the handling of precision equipment. Additionally, the control handle is lightweight and requires little force, allowing a single person to perform complex operations.
4. Simple structure, low maintenance cost: The core components are pneumatic motors and gear transmission systems, without complex electrical components. There are a few vulnerable parts, and they are easy to replace. Daily maintenance mainly involves cleaning the air filter, checking the air pipe seal, and lubricating the chain. There is no need for professional electricians to inspect the circuit, and the maintenance cycle is long, and the cost is low, effectively reducing equipment downtime.
When it comes to its application scenarios, fixed pneumatic hoists are particularly suitable for harsh environments such as flammable and explosive, humid, and highly corrosive conditions. For example, in coal mines, where there are large amounts of flammable gases and dust, fixed pneumatic hoists are the ideal choice due to their explosion-proof characteristics. Therefore, we are devoted to researching high-technology pneumatic hoists to meet the explosion-proof needs. Meanwhile, various types of fixed air hoists are for sale. Whether 1 ton, 2 tons, 5 tons, or 10 tons, we can all provide it for you. In addition, we are one of the leading hoist producers in China. We also produce other types of hoists, such as fixed-type chain electric hoists, trolley-type electric chain hoists, air winches, etc. Also, we support all types of hoist customization. Please send us your requirements to get the latest price!
The air hoist is a type of lifting equipment with explosion-proof features. Whatever fixed pneumatic hoists or trolley air hoists, we can all supply them to you. We welcome you to visit our factory before ordering. If you want to buy a hoist but do not know how to choose, and want to know the price, please let us know your requirements, and we will set up a personalized technical solution for you.
