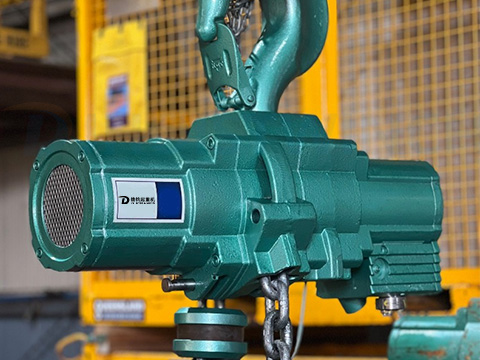

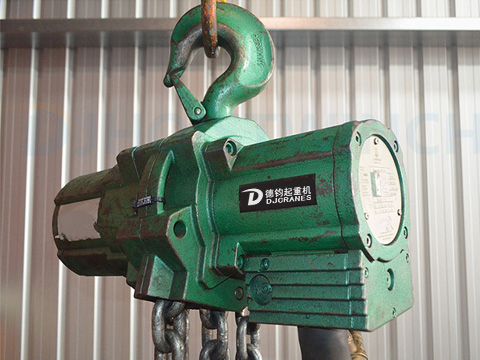

The complete assembly of the chain pneumatic hoist consists of three parts: the lifting mechanism, the traveling mechanism, and the air supply system. The lifting mechanism includes a pneumatic motor, a planetary reducer, a lifting assembly, a brake, a lifting chain, a lifting hook assembly, and a main control valve. The lifting mechanism realizes the lifting and lowering of heavy objects by controlling the main control valve, and achieves the positioning braking by opening and closing the brake to ensure the safety of the lifting operation. The lifting mechanism can be used in a fixed state or moved under the traveling mechanism. The traveling mechanism uses an air-powered traveling trolley, consisting of an active wheel, a passive wheel, and a wall panel. It is driven by the pneumatic motor and planetary reducer controlled by the main control valve to achieve the horizontal movement of the lifted heavy objects. The air supply system uses compressed air as the power source to control the hoist's lifting and traveling.
1. No explosion-proof requirements, completely solving the explosion-proof problem of lifting equipment.
2. Energy-saving, the power source is compressed air, with no medium leakage and no environmental pollution, suitable for clean production.
3. It can operate continuously and frequently, with stable and reliable operation.
4. It can run at variable speeds; the running speed can be adjusted by hand valves, which is simple and flexible.
5. The lifting mechanism has an overload protection device to ensure the normal operation of the reducer.
6. The braking is rapid and reliable, ensuring safe production.
Due to their excellent explosion-proof performance, pneumatic hoists are widely used in industrialized countries abroad in chemical, textile, painting, logistics, port, and other workplaces that are prone to fire, explosion, high temperature, high dust, and strong corrosiveness. Because they have high frequency and stepless speed regulation features, they are favored by manufacturing industries such as automobiles, tractors, motors, refrigerators with large production volume and strong continuous operation capabilities, as well as the logistics industry. Especially in some industrialized countries, it is stipulated that in places prone to fire and explosion, such as the petroleum, chemical, automobile, and mining industries, pneumatic hoists must be mandatorily used.
Air Hoist is our main product. We are Henan Dejun Industrial Co., Ltd, a skilled hoist manufacturer in China. Besides the air hoists, we can also produce electric chain hoists, wire rope electric hoists, and air winches etc. Any needs, please feel free to contact us!
