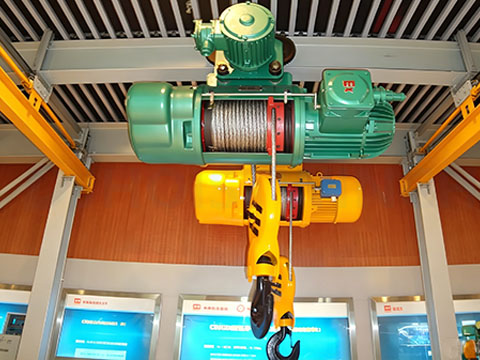

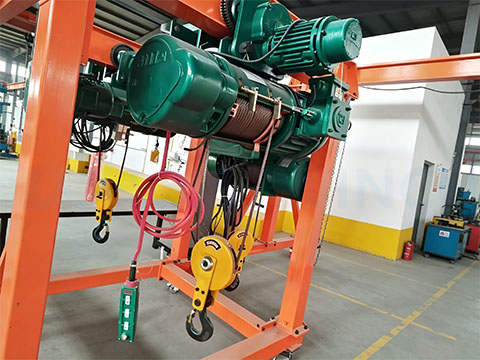

Explosion Proof Wire Rope Hoist

Explosion-proof wire rope hoists are a type of explosion-proof material handling equipment. It is based on ordinary electric hoists but with special treatments applied to key components such as the motor and electrical components, to prevent the generation of electric sparks that could ignite surrounding explosive mixtures.  Explosion-proof electric wire rope hoists use an explosion-proof motor as power, which drives the drum to wind and unwind the wire rope through a reducer, achieving vertical lifting and horizontal movement of heavy objects. All electrical components, such as the motor, control box, and buttons, are explosion-proof, and mechanical parts are treated with spark-proof materials to ensure that no explosion will occur in explosive environments. Due to its lightweight, small size, compact structure, and stable operation, the explosion-proof wire rope hoists are widely used in industries with strict safety requirements, such as petroleum, chemical, coal mining, and aerospace. We are a professional manufacturer and supplier of electric hoists in China. Besides the explosion-proof wire rope hoist, we also produce and sell various wire rope hoist types for you. Welcome to contact us for more details!

Explosion Proof Wire Rope Hoist Specifications

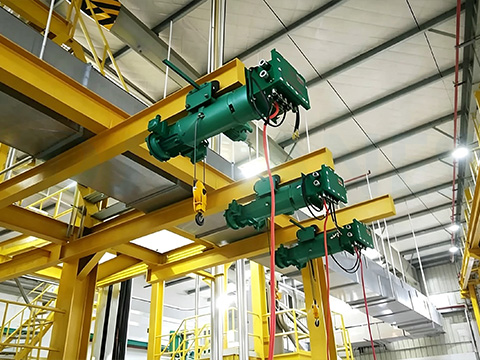

What Is It Used For?

1. Explosive Gas Environments: Zone 1, Zone 2 (IIA/IIB/IIC levels, T1-T4 temperature groups)

2. Combustible Dust Environments: Zone 21, Zone 22

3. Typical Industries: Petrochemical, underground coal mines, gas stations, pharmaceutical factories, paint shops, grain processing, etc.

What Are The Advantages Of Explosion-proof Wire Rope Hoists Over Ordinary Electric Wire Rope Hoists?

The main difference in performance between ordinary electric wire rope hoists and explosion-proof wire rope hoists is that explosion-proof electric hoists can prevent explosions, while ordinary electric hoists cannot. The price of explosion-proof electric hoists is higher than that of ordinary electric hoists due to their performance advantages. In fact, explosion-proof electric hoists are manufactured based on ordinary electric hoists, and they are the same in lifting capacity. The difference lies in the materials and components of the electric hoists. Explosion-proof electric hoists can be used in flammable and explosive hazardous locations, and their product performance is more reliable.

1. Ordinary electric hoists use ordinary conical motors, while the lifting mechanism and running motor of explosion-proof electric hoists are explosion-proof, with a level of ExdⅡCT4. The motor protection grade is IP55, and the insulation grade is F. In contrast, the insulation grade of ordinary wire rope electric hoists is B, and the protection grade is IP44.

2. Explosion-proof electric hoists use explosion-proof hooks. The third-level explosion-proof hook is the same as the ordinary hook, but there is a copper sheet at the rope outlet of the hook pulley. The fourth-level explosion-proof hook is based on this, and the hook head is replaced with stainless steel.

3. Compared with ordinary electric hoists, the electrical box of explosion-proof electric hoists is larger in volume, heavier in weight, the handle is more solid, and the waterproof performance is stronger. Explosion-proof electric hoists use explosion-proof fire-limiting limiters, with an EX explosion-proof mark on the surface.

4. The size of explosion-proof electric hoists is longer than that of ordinary wire rope hoists. Adding the size of the limiter and control box, they are larger than ordinary wire rope hoists, and the weight is also much heavier than ordinary hoists.

5. The reducer of explosion-proof electric hoists is partially different from that of ordinary electric hoists. Explosion-proof electric hoists are mainly used in flammable and explosive hazardous locations, while ordinary electric hoists cannot. The main materials of the explosion-proof hoist reducer: the box body and box cover are HT200 castings. The 04-08 gear shaft is 20CrMnTi; the 09 gear is 40Cr.

How To Buy A Suitable One?

1. Determine the explosion-proof rating

• Check the hazardous media on site: gases, dust.

• Check the temperature group: Select T4 for the safest approach, covering most scenarios.

• Explosion-proof marking matching: e.g., select Ex dIIC T4 for hydrogen environments, Ex dIIB T4 for ethylene environments.

2. Determine core operating parameters

• Lifting capacity: Maximum load + 10%~20% safety margin; overloading is strictly prohibited.

• Lifting height: Ground to the highest lifting point + safety margin.

• Working class: Select M4/M5 for frequent operations, M3 for occasional use.

• Operating requirements: Select fixed type for fixed workstations, select mobile type for multi-point operations.

3. Structure and Accessory Selection

• Speed: Dual-speed for precision positioning, single-speed for general hoisting.

• Height: Low headroom type for insufficient factory height.

• Control: Wired button, wireless remote control.

• Environment: Stainless steel wire rope for corrosive environments, dust-proof and sealed for dusty environments.

Finally Words

The explosion-proof wire rope electric hoist is a special lifting equipment specially designed by us for environments prone to fire and explosion. The hoists have been exported to over 100 countries and regions all over the world. For any questions and the latest price, please feel free to contact us!
