PRODUCT DESCRIPTION
Explosion Proof Wire Rope Hoist Introduction
The mechanical structure of the explosion-proof wire rope electric hoist is basically the same as that of the ordinary CD and MD electric hoist. Explosion-proof electric hoist, that is, on the basis of ordinary wire rope electric hoist, made of special non-spark material, the motor, electrical appliance, running wheel, rope guide, hook, and operation handle of the hoist are explosion-proof. And explosion-proof performance is safe and reliable, according to the different environments, it is divided into gas explosion-proof and dust explosion-proof.
The lifting weight is 0.5-16ton, the lifting height is 6m-18m, the lifting speed is 3/0.3-8/0.8m /min, the working level is M3, the applicable ambient temperature is -20℃ to 40℃, and the explosion-proof level is ExdⅡBT4 / CT4. It is suitable for places with explosive gas mixture formed by combustible gas, steam, and air of class ⅡA.ⅡB, class ⅡC, temperature group T1&T4.
At the same time, it can be suspended on the I-beam rail to run in a straight line as a lifting heavy object, it is a powerful tool to improve the working conditions of the explosion-proof environment and improve labor productivity, so as to become the necessary equipment for processing.
Explosion Proof Wire Rope Hoist Details
An explosion-proof electric wire rope hoist consists of an explosion-proof motor, drum, explosion-proof brake, buffer, hook block, explosion-proof rope guide, explosion-proof handling handle, explosion-proof limit device, etc.
(1) Fire stopper: The hoist can cut off the circuit in case of emergency and has a device to protect the stopper, it can prevent the hook from exceeding the rise limit position, and avoid rushing to the top and the wire rope being pulled off.
(2) Handle design: thickened high-quality plastic forged handle, good sealing, excellent explosion-proof performance, easy to use.
(3) Electric hoist sports car: strong restraint, smooth operation, efficient and convenient.
(4) Flameproof brake: the lifting mechanism should have two brakes. There is another safety brake on the drum, the safety brake does not use electricity (purely mechanical) and is not affected by electricity, when the first brake is working normally, the safety brake does not work, when the first brake fails or other parts are damaged, causing heavy objects to slide down, the safety brake braking immediately.
(5) Buffer: the selection of polyurethane buffer or JB/T 8110.2 requirements of rubber buffer, surface resistance is not greater than 109Q.
(6) The design of the reel and the hook pulley group, so that when the wire rope is wound into or around the reel, the Angle of the wire rope deviates from the spiral groove on both sides is not more than 2, and the anti-stripping rope reel is made of cast iron or seamless steel pipe. Using the flower key to transfer power, the drum shell is made of steel plate welding, extending the service life of the equipment.
(7) Wire rope: Select the type and specifications in GB 8918-2006, advanced alloy load chain, and have reliable lubrication, high strength, and high wear resistance. The safety factor of the wire rope is not less than 4 when the working level of the lifting mechanism is M3; when the working level of the lifting mechanism is M4, it is not less than 4.5.
(8) Hook group: When the explosion-proof level is IIC, the fully forged hook enables the hook to take measures to prevent dangerous sparks caused by impact or friction.
(9) Overload protection devices can be provided upon request. Contact us for more details.
Explosion Proof Wire Rope Hoist Technical Parameters:
| Product model | BCD |
| Lifting weight | 0.5-16t |
| Lift height | 6-18m |
| Working level | M3 |
| Applicable temperature | -20-40℃ |
| Lifting speed | 3/0.3—8/0.8m/min |
| Explosive-proof grade | ExdⅡBT4 / CT4 |
Authentication Certificate:
CE certificate, ISO certificate, SGS certificate, explosion-proof certificate, etc.
Looking forward to hearing from you
Contact us for any information you need or for a quote, you can contact our sales team directly or complete the form below, we will reply you promptly.
Explosion Proof Wire Rope Hoist use environment
Explosion-proof electric wire rope hoist use environment: temperature -20℃ -+ 40℃; Below 1000m above sea level; Relative humidity 85% (20±5℃).
Its main body can be suspended on the I-beam track for straight or curved running, or installed on the fixed bracket, as the lifting of heavy objects.
The BCD-type explosion-proof electric hoist can be used according to different requirements, it is used with an LXB-type explosion-proof single-beam suspension crane or LB, LHB-type explosion-proof single, double beam bridge crane. It is a small lifting device that can be installed on all types of cranes such as gantry cranes, bridge cranes, boom cranes, and other specialized cranes for lifting all types of materials. With minor modifications, it can also be used as a winch.

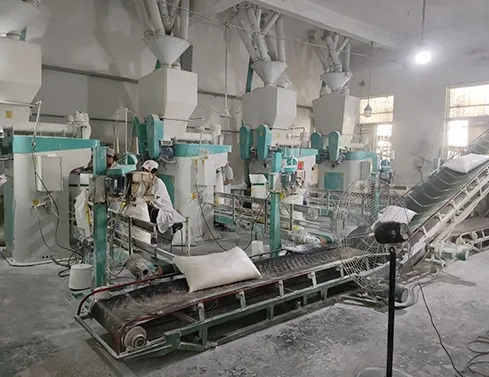

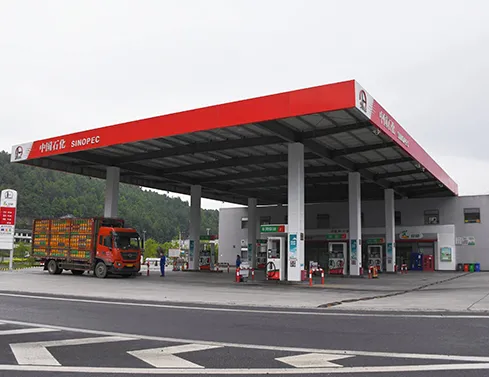

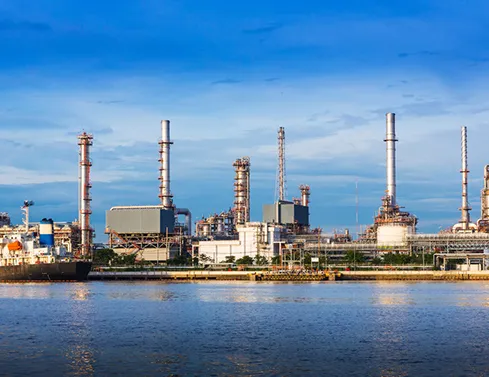

Wire rope explosion-proof electric hoist is suitable for grade ExdⅡBT4 / CT4, temperature group T1&T4 combustible gas, steam, and air formed by explosive gas mixtures, such as gas stations, oil refineries, petrochemical, flour mills, bamboo plants, and other places. Open flames are strictly prohibited in these places, and the use of production equipment is also strict. It does not produce mechanical sparks during use to meet the needs of the industry.
Caution
① The wire rope surface of the explosion-proof electric hoist should ensure that there is no broken wire phenomenon, the lubrication and maintenance of the wire rope should be done. To reduce the friction between the wire rope and the rope guide, drum, etc.
② When the explosion-proof wire rope electric hoist works in an environment with more metal obstacles, in order to prevent the hook of the electric hoist from colliding with metal obstacles. At this time, it is necessary to mark the announcement mark on the side plate of the electric hoist hook pulley.
③ The exposed part of the explosion-proof wire rope electric hoist should take speed-limiting technical measures, and the running speed of the explosion-proof electric hoist on the track and the speed of the wire rope involved in the line with the drum cannot exceed 25 meters per second.
④ It should be ensured that the joint place of the explosion-proof wire rope hoist track is kept smooth and smooth to ensure that the running sports car will not be blocked and impacted.
⑤ If there are two or more explosion-proof wire rope electric hoists running at the same time on the running track, it is necessary to set a slow device to prevent collision. To strictly control the quality of the buffer device, choose non-metallic material, and the resistance of the buffer device surface cannot exceed ten.
⑥ Ensure that the operation of the explosion-proof hoist is good, stable, and reliable, and prevents the wheel from slipping.
⑦ The power cord should use a flexible cable power inducer.
⑧ When the explosion-proof electric hoist is working normally, the surface temperature does not exceed 110℃.
⑨ Suitable indoor temperature -25 ° C ~+40° C, special circumstances need to be used outdoors need to add protective devices.
⑩ Mechanical parts to take flameproof measures, in order to prevent the electric hoist running friction, impact of high-temperature sparks, and the relevant parts for treatment.
⑪ In order to prevent sparks, an appropriate amount of mechanical oil should be injected into the hoisting and running reducer. Reels, steel cables, hook pulley bearings, wheels, and lifting and running motors should also be greased.
FAQ
Q: How do I get a price for explosion-proof electric wire rope?
If you want to buy explosion-proof electric wire rope hoist, you need to provide the following parameters: lifting weight, lifting height, power supply voltage, use environment, lifting heavy objects and other special requirements.
Q: What is the MOQ for this electric hoist?
A set
Q: How long is the warranty period for this explosion proof wire rope hoist?
Within 12 months from the acceptance of your explosion-proof electric wire rope hoist.
Q: Can I customize the explosion proof wire rope hoist?
Yes, we can provide OEM and ODM services. Click to view customized explosion-proof hoist solution details.
Q: What's your delivery time?
In general, within 7 days after receiving the advance payment, we will complete the production and arrange the delivery, the exact time limit should be based on the detailed requirements;
If you have specific requirements for the delivery date of the order, please inform us clearly before we sign the order, our company will give priority to urgent orders to meet your needs;
Q: Do you have overseas installation service?
Yes, we have overseas installation service. If you need to install the service, please contact us for more information.
Q: Do you provide after-sales service? When the crane fails, can timely provide technical support or spare parts?
Provided. Our company provides free online technical support 24 hours a day;
If the customer is unable to work according to our online guidance, we can arrange for our engineers to go to your factory.
During the warranty period, for the parts damaged by accident, our company will send the fastest time; beyond the warranty period, our company will be charged at the cost price.
Q: How long does it take to ship to my country?
For international shipping, this depends on the quantity of the product and the delivery address. For specific estimates, please provide details so that I can cite the most cost-effective option.
Q: What is the packaging of explosion-proof electric wire rope?
In order to protect the motor of the electric hoist from being damaged by extrusion during transportation, plywood wooden cases are generally used for packaging and transportation.
Electric hoist crane factory to use rope winding, wrapped after the plywood wooden box, this wooden box is specially customized for the hoist, and the wooden box has a certain impact resistance, and in the transportation process will avoid bumping damage to the hoist and the motor.
Q: What areas do you serve?
Dejun Crane has independent import and export qualification.
Lifting machinery exports to Mexico, Brazil, Peru, the United Kingdom, Sweden, Russia, the United States, Canada, New Zealand, Zambia, Ethiopia, and Egypt, the United Arab Emirates, Tajikistan, Thailand, South Korea, the Philippines, Indonesia, Bangladesh and other more than 60 countries.
Q: How do I pay?
We accept T/T bank transfer, L/C, PayPal.
For regular customers, we can provide more payment terms, such as credit cards.
Q: Explosion-proof electric wire rope how many ways are there to operate?
For this product, you can choose between two operations. The standard method of operation we provide is the handle. However, since this product is used in a special environment, we recommend using a wireless remote control.
You can select any of them when ordering.
Q: Can the explosion proof wire rope hoist work in hazardous environments?
For the safety of your use, it is necessary to clarify what environment you refer to as a hazardous environment. Different hazardous environments require different equipment.
The explosion-proof electric hoist is mainly suitable for dangerous places with explosive gas mixture formed by flammable gas, steam and air.
