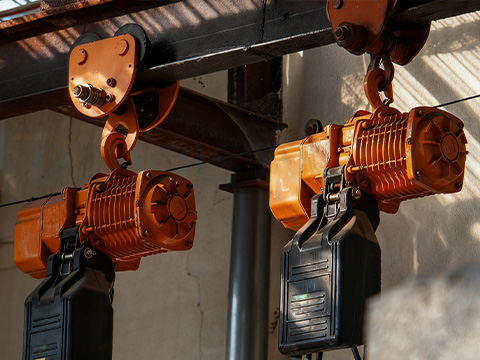

A fixed electric chain hoist is a type of lightweight electric lifting equipment that is installed fixedly and achieves vertical lifting of goods through a circular chain drive. It is particularly suitable for working environments with limited space and where lateral movement is not required, thanks to its compact structure, ease of installation, and low maintenance costs. Last week, an American client bought two sets of fixed-type chain hoists from us. They are a large grinding apparatus production factory. On their production lines, they need the lifting hoist to carry raw materials and finished products. Considering that they only lift objects at a fixed location, we recommend the fixed-type electric chain hoist for them. As a leading manufacturer and supplier of lifting hoists, we mainly produce and sell electric hoists, air hoists, and electric winches for you. Our lifting hoists have been exported to over 100 countries and regions from China. If you have any needs or competitive prices, please feel free to contact us!

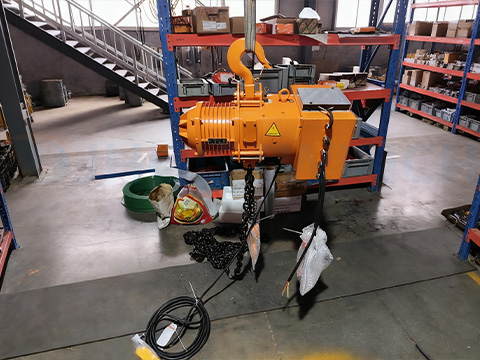

| Item | Fixed Type Electric Chain Hoist |
| Order Quantity | 2 sets |
| Lifting Capacity | 3 tons |
| Lifting Height | 9 m |
| Lifting Speed | 5.4 m/min |
| · LoadChain Diameter | 11.2 mm |
| Power Supply | 110V 60HZ 1P |
| Motor Power | 3 KW |
| Working Duty | M3 |
| Protection Level | IP54 |
| Operating Method | Handle + remote control |
| Payment | TT |
1. It occupies a very small area and is suitable for narrow spaces: without a running track or trolley, it only requires one fixed lifting point, making it ideal for corner areas in workshops, beside machine tools, and in the gaps between warehouse shelves for fixed-point operations.
2. Compact structure, light weight, and easy installation: The hoist is lightweight and can be installed by two or three people. The installation process is simple and does not require professional lifting equipment.
3. Convenient maintenance and low cost: The chain structure of our fixed-type chain hoist is simple, eliminating problems such as wire rope entanglement and jumping out of the groove. Daily maintenance costs are low. Chain replacement is convenient; there is no need to disassemble the drum. Just loosen the connecting pins at both ends of the chain to replace it with a new one.
4. Precise control: Smooth lifting and suitable for precise operations: The motor speed can be finely adjusted through the control button, and the goods do not shake significantly during lifting.
Although both fixed chain hoists and trolley-type electric chain hoists belong to the types of electric chain hoists. They are completely different in terms of structural design, mobility, and working range.
Fixed chain hoist: It has no traveling trolley and only a fixed suspension device, which is fixed at a single lifting point.

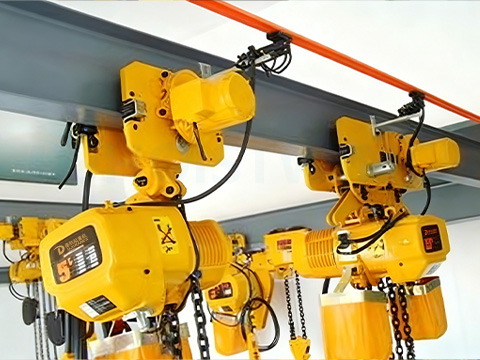

Traveling chain hoist: It is equipped with a traveling trolley, with wheels at the bottom of the trolley, which can move laterally along a preset single beam or suspended track; the hoist body is integrated and fixed with the trolley.
Fixed chain hoist: It can only perform vertical lifting directly below the fixed lifting point and cannot move laterally. For example, if the lifting point is directly above a machine tool, it can only lift the workpiece from the ground to the machine tool's worktable or from the worktable to the ground, but cannot move it to a nearby shelf.
Electric trolley chain hoist: It can move laterally along the track and perform vertical lifting simultaneously. For example, if the track is laid along a 20-meter production line in a workshop, the hoist can lift the workpiece from the start of the production line, move it to the assembly station in the middle, and then to the finished product area at the end, without the need for manual transfer throughout the process. This can significantly save labor costs.
Fixed chain hoist: It serves only one fixed work position and is suitable for high-frequency, single-point operations; however, it cannot collaborate across different work positions. If multiple work positions need to be served, multiple units need to be installed repeatedly.
Trolley chain hoist: One unit can cover multiple work positions without the need for repeated installation, thereby reducing equipment investment. It achieves coordinated operation of lifting and movement, resulting in higher working efficiency compared to the fixed type.
Fixed chain hoists are suitable for high-frequency operations at a single location, while electric trolley chain hoists are ideal for multi-position and large-scale operations. If you only need to lift heavy objects at a fixed point, a fixed chain hoist is the right choice. For instance, loading and unloading goods beside machine tools, accessing products from a single shelf, or when the budget is limited and space is tight, a fixed hoist is preferred due to its low cost and quick installation. If you need to move materials across workstations or in multiple areas, a traveling hoist is recommended. For example, in parts production lines or moving products between multiple shelves, using a traveling chain hoist can reduce the number of devices and improve work efficiency. Moreover, we will customize a suitable chain hoist according to your needs. If you need to order a chain hoist, please feel free to contact us!
Whether fixed chain hoists or trolley-type electric chain hoists, all are available! Please send us your requirements and customize a suitable hoist for you. Moreover, we welcome you to visit our factory and see our production lines in person.
