Good news! A Sri Lankan client bought a set of 3-ton trolley electric chain hoist from us. The electric trolley chain hoist is our hot-selling product. Due to its compact structure, strong lifting capacity, flexible operation, high safety performance, and easy maintenance, our trolley-type electric chain hoist has become an indispensable lifting equipment in industrial production and logistics transportation fields. It plays a significant role in improving work efficiency and ensuring work safety. This client is an automobile spare parts manufacturer; they need an electric hoist for their new production line. Through knowing their usage needs, our engineer drew up a personalized solution and customized a trolley-type chain electric hoist for them. As an experienced hoist manufacturer, we provide various kinds of electric hoists for you. If you have any needs, please feel free to contact us!
| Item | Electric Chain Hoist With Trolley |
| Lifting Capacity | 3 tons |
| Lifting Height | 6 meters |
| Lifting Speed | 2.2 m/min |
| Lifting Power | 1.5 kw |
| Traveling Speed | 11 m/min |
| Trolley Power | 0.75 kw |
| Chains | 3 falls |
| Chain Diameter | 7.1 mm |
| Power Supply | 380V 50HZ 3P |
| Working Class | M3 |
| Insulation Class | F |
| Protection Grade | IP54 |
| Working Temperature | -20℃~+45℃ |
| Payment | TT |

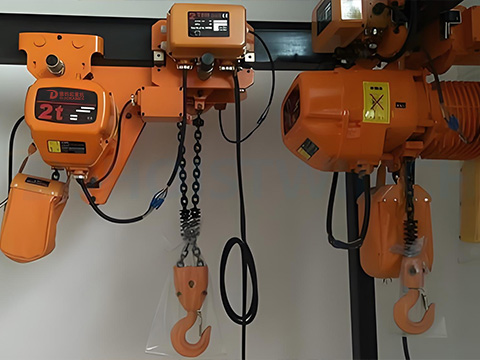

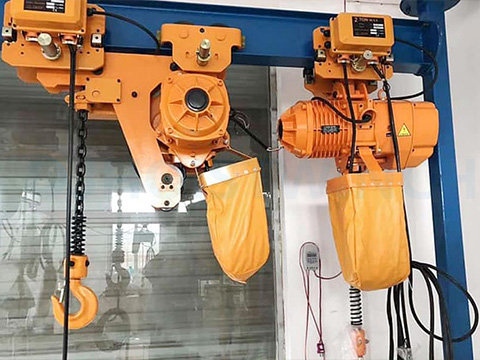

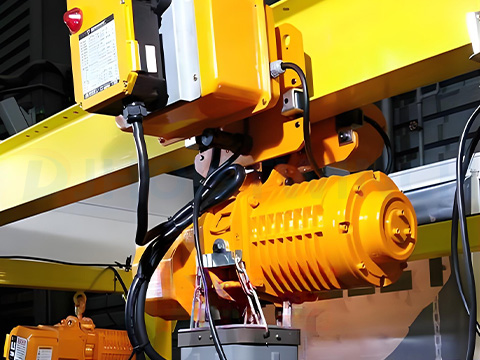

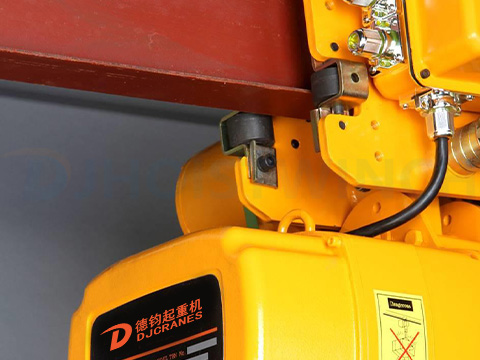

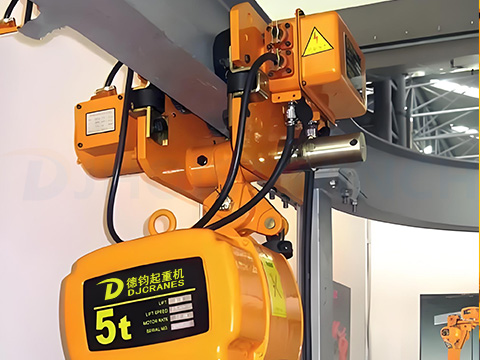

The running type chain electric hoist is a widely used electric lifting device in various industrial settings. It combines the advantages of electric hoists and running hooks, enabling easy lifting and transportation of heavy objects. It has the advantages of simple operation, high safety and reliability, and high efficiency. Moreover, it is an indispensable handling tool in factories, warehouses, docks, and other places. The chain electric hoist overcomes the disadvantage of the wire rope electric hoist, which is bulky and heavy. The chain electric hoist is composed of an electric motor, transmission mechanism, and sprocket. The difference from the wire rope electric hoist is that the wire rope is replaced by a chain. If you want to know more about our chain electric hoists, please feel free to contact us!
1. In terms of structural design, the running type chain electric hoist has a compact structure. Its overall volume is relatively small, not occupying too much space. Whether installed on the steel beams in a factory building or used in some places with limited space, it can be easily adapted. The compact structure also facilitates the transportation and installation of the equipment, reduces the complexity of the installation process, and enables it to be put into use quickly.
2. It performs well in lifting capacity. The running type chain electric hoist can provide different specifications of lifting weights, from smaller tonnage to larger tonnage, with corresponding models available for selection, meeting various lifting requirements. Whether it is lifting light components or moving heavy goods, it can perform precise operations. Moreover, during the lifting process, its lifting speed is relatively stable, and through precise control, the goods can be lifted and lowered smoothly, avoiding problems such as shaking and collision caused by unstable speed, ensuring the safety of the operation.

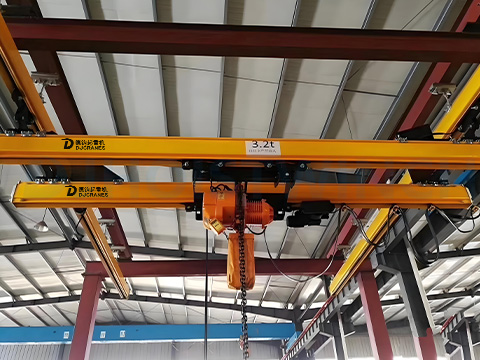

3. It has good operational flexibility. This type of electric hoist is usually equipped with a running mechanism, allowing it to move laterally along the I-beam track to lift goods at different positions. Its running speed can be adjusted according to actual operation needs, increasing efficiency at high speeds and facilitating precise positioning at low speeds. Additionally, the operation of the electric hoist is very simple. Operators can control the running direction, speed, and lifting and lowering actions of the electric hoist within a certain range through wired or wireless remote controllers, greatly improving the convenience and accuracy of operation.
4. The running type chain electric hoist also has many safety measures. It is equipped with multiple safety protection devices, such as a lifting height limiter. When the electric hoist lifts to the set limit height, the limiter will automatically cut off the power to prevent the hook from continuing to rise and causing a top strike accident. There is also a running limit device that can restrict the running position of the electric hoist at both ends of the track, avoiding dangerous situations where it exceeds the track range. At the same time, the chain of the electric hoist is usually made of high-strength alloy steel, which has high tensile strength and wear resistance, reducing the risk of chain breakage and further ensuring the safety of lifting operations.
Regarding the electric chain hoists manufacturer, Dejun Industrial is very well known in China. In the aspect of manufacturing experience, we have over 40 years of experience in hoist manufacturing. At our factory, we have four sets of electric hoist manufacturing lines to meet our clients' purchase needs. In addition, we have several skilled engineers to help you select a reasonable lifting device and set up a personalized technical support solution according to your needs. Besides the electric trolley chain hoist, we also produce fixed-type chain hoists, electric wire rope hoists, air hoists, low-headroom hoists, etc. Any needs, please do not hesitate to contact us!
The trolley-type electric chain hoist is an efficient, safe, and convenient electric lifting device, suitable for lifting and transporting heavy objects in various industrial settings. We offer multiple models of running-type chain electric hoists and provide customized services. If you have any needs, please don't hesitate to contact us at your convenience.
