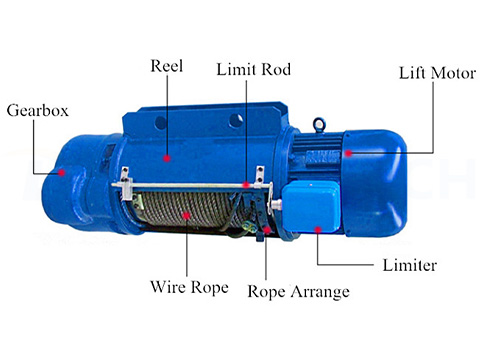

The fixed type wire rope electric hoist is a lifting device without a running mechanism and is used in a fixed position, mainly for vertical lifting operations. Recently, a Guatemalan customer contacted us and explained that they want to order some lifting hoists with a limited budget from China. And we know that they have a small scale factory and need lifting hoists to carry heavy materials at a fixed location. As we all know, the fixed type electric wire rope hoists are suitable for scenarios where the lifting point is fixed and does not need to be moved, such as fixed workstations, freight elevators, or warehouse loading and unloading platforms. Their advantages lie in their simple structure, easy installation, low cost, and stable operation. Therefore, we suggested to them the fixed electric wire rope hoists. Considering their factory area, working efficiency, and material weight, etc, we customized the 2 ton fixed type electric wire rope hoists for them. And now, the hoists have been shipped to Guatemala. In China, we are a leading hoists manfuacturer and seller. If you also want to order a lifting hoist from us, please feel free to contact us.
1. Smooth operation and quick positioning
The fixed wire rope electric hoist uses a frequency conversion drive, allowing users to precisely position the load during lifting or movement, reducing the swing of the lifted object and enhancing safety and comfort during operation.
2. Strong adaptability
It can be installed independently on I-beams or used with single-girder cranes, suitable for various scenarios such as manufacturing, construction, logistics, and warehousing industries; it has a simple structure, low installation cost, high long-term operational stability, and low maintenance requirements.
3. Large-diameter drum, extended service life, and reduced angle deviation
The large-diameter drum design of the fixed wire rope electric hoist doubles the service life of the wire rope and improves safety during operation. At the same time, the large-diameter drum reduces the angle deviation during lifting, achieving vertical lifting, precise hook positioning, and minimal drift, making it more convenient to use.
4. Humanized design
The fixed wire rope electric hoist fully considers the needs of customers from the perspectives of performance and usage, increasing safety and comfort during the use of the fixed wire rope electric hoist. The upper and lower limit switches improve safety during operation.

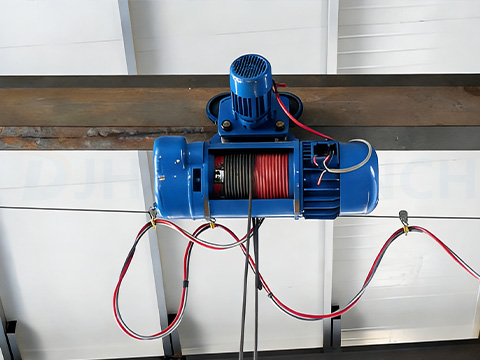

The core difference between fixed type electric wire rope hoists and running type electric wire rope hoists lies in their movement functions and application scenarios. Fixed hoists can only perform vertical lifting and lowering operations, and their positions are fixed after installation, unable to move. Running hoists, on the basis of fixed hoists, add a horizontal movement function, allowing them to move left and right on I-beam tracks through electric or manual trolleys, thus enabling multi-directional handling of heavy objects.
1. Structurally, running-type electric wire rope hoists are equipped with more running mechanisms, such as electric trolleys or manual trolleys, than fixed hoists, giving them the ability to move horizontally, while fixed hoists do not have this configuration. Their basic structures (such as lifting mechanisms and braking systems) are similar, with the main difference lying in the expansion of the running function.
2. In terms of performance, running hoists have obvious advantages in flexibility and operation range, can cover a larger area, reduce repetitive lifting time, and improve efficiency, especially suitable for scenarios where heavy objects need to be moved frequently. Fixed hoists have a simple structure, are easy to install, have a low cost and high operational stability, but their operating range is limited to the fixed point.
3. In terms of application scenarios, the choice should be based on the operation requirements: fixed type electric wire rope hoists are suitable for fixed lifting points, such as freight elevators, fixed workstations, warehouse loading and unloading platforms, etc.; running hoists are more suitable for workshops, freight yards, construction sites, and other places that require large-scale movement of lifting.

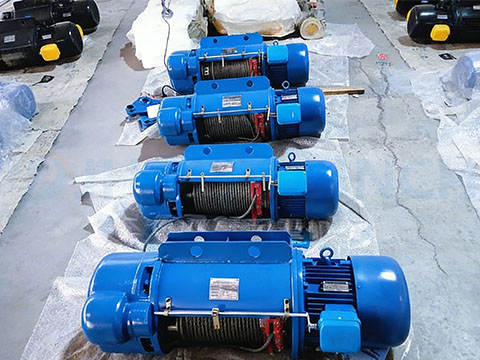

The fixed steel wire rope electric hoist is a type of lifting equipment without a running mechanism and is designed for fixed use. It is mainly used for vertical lifting operations. It is typically installed on fixed lifting points. Due to its compact structure, light weight, high efficiency, and convenient operation, it is a commonly used lifting equipment in fixed working environments such as industrial enterprises, construction sites, and warehouses. Besides Guatemala, our wire rope hoists are also sold to other countries and regions all over the world, such as Turkey, America, Iran, Iraq, France, etc. Besides the fixed type wire rope electric hoists, we also produce electric chain hoists, running type wire rope hoists, air hoists, etc. For any needs, welcome to contact us at any needs
