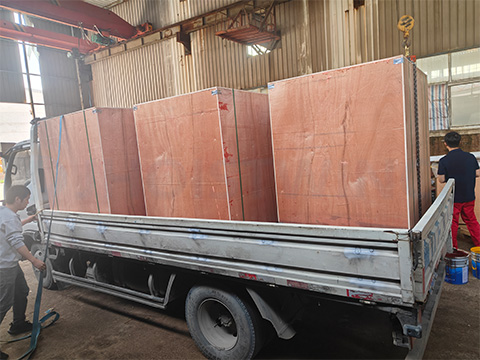

The European electric wire rope hoist is a light and small lifting equipment that integrates European design concepts. Its core adopts a wire rope winding structure and is driven by a motor to achieve vertical and short-distance horizontal lifting operations. Recently, we received a hoist machine inquiry from a Serbian customer. This client is our partner in Serbia, and we have been cooperating with them for many years. They have a client who is running an auto spare parts production factory and wants to buy a lifting hoist for their production line. At their factory, they need to carry the heavy objects from production lines to warehouses. Considering their factory area, production frequency, and object weight, they finally ordered a European electric wire rope hoist with a 5-ton capacity. And now, the hoist has finished production and shipped to Seriba. Besides the wire rope hoists, we also produce and sell electric chain hoists, pneumatic hoists, and stage hoists, etc. For any needs, please feel free to contact us!
| Item | 5T European Electric Wire Rope Hoist |
| Lifting Capacity | 5 tons |
| Lifting Heigh | 5 meters |
| Lifting Speed | 0.8-5 m/min (with VFD) |
| Traveling Speed | 5-20m/min (with VFD |
| Lifting Motor Power | 6.1 kw |
| Traveling Motor | 0.64 KW |
| Power Supply | 400V 50Hz 3P |
| Working Class | M5 |
| Protection Class | IP55 |
| Insulation Class | H |
| Payment | TT/LC |

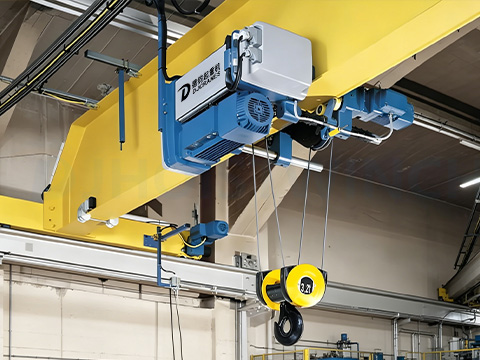

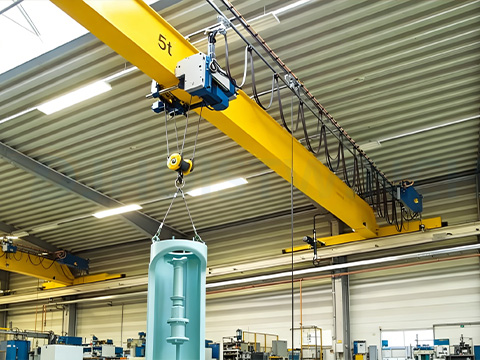

The 5-ton European electric wire rope hoist is a compact and lightweight lifting device designed and manufactured with advanced European technology. It has a rated lifting capacity of 5 tons and uses wire rope as the lifting gear. It is usually integrated into the trolley of a bridge or gantry crane for use. It is a new high-end product that combines European technology with domestic demands. Compared with traditional chain electric hoists, it features a lighter weight, smoother operation, and lower noise. In the construction field, it is often used for lifting prefabricated components and small building materials. In small workshops, it can complete equipment relocation and mold replacement tasks. In logistics warehouses, it can be used in conjunction with track systems to carry heavy goods. For more details, please feel free to contact us!
It adopts a compact design, with a small overall height and light weight. The low headroom design allows for a greater effective lifting height under the same factory height. This design can reduce the height and load-bearing requirements of the factory building, thereby saving your comprehensive investment.
The modular and square structure design enhances the universality and stability. The use of high-quality high-strength wire rope, optimized drum and wire rope diameter ratio, and high-quality bearings and electrical components ensures smooth transmission, low noise, and long service life. Its working level can reach A5, meeting the requirements of heavy-load and frequent operations.
It can be configured with dual-speed lifting, specific running speed, explosion-proof motor, or anti-corrosion treatment, etc., to adapt to various complex scenarios such as precision assembly, long-distance transportation, pickling workshops, and ports. The hook adopts a widened and thickened pull plate and forging process, which is strong and flexible, further ensuring operational safety.
Thanks to the lightweight design, the equipment has low wheel pressure, which reduces the requirements for track and support structure specifications and enables energy-saving operation. At the same time, its design focuses on convenient maintenance and high assembly accuracy, which helps reduce downtime due to faults and improve overall operational efficiency.
In summary, the 5-ton European electric wire rope hoist achieves higher lifting performance, reliability, and energy efficiency in a limited space through advanced design and manufacturing processes. It is an ideal piece of equipment for modern factories to improve material handling efficiency and reduce the total life cycle cost.
When purchasing a suitable 5-ton wire rope electric hoist, it is not simply a matter of looking at the tonnage and price. A comprehensive assessment based on specific process conditions is required. The first step is to clarify the working level, that is, the expected frequency of use and load state of the equipment, which is related to the motor power, brake specifications, and overall structural strength of the hoist. Secondly, the reasonable length of the wire rope and the rope capacity of the drum should be determined based on the factory height and the required lifting height to avoid insufficient length affecting use or excessive length causing management inconvenience. In addition, the working environment is also a key consideration. For 5-ton wire rope electric hoists used in humid, dusty, or corrosive gas environments, products with corresponding protection levels should be selected, and the motor and electrical components may require special anti-corrosion and moisture-proof treatment. If it needs to be used in explosion-proof areas, explosion-proof qualified special wire rope electric hoists must be selected. Finally, the brand reputation of the hoist supplier, the after-sales service network, and whether the equipment has complete safety certifications are also very important reference factors.
The European-style steel wire rope electric hoist benefits from the structural advantages of the European design and the reliability of the steel wire rope drive. Choosing a device that meets your specific needs can not only enhance operational efficiency but also reduce long-term maintenance costs. You are welcome to contact us for a competitive price and visit our hoist production lines in person!
