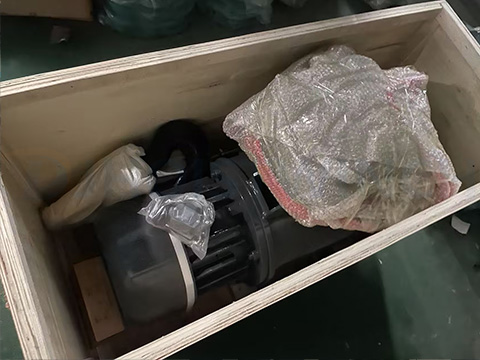

Electric hoists play an important role in industrial production. Wherever there is a need for heavy object lifting, electric wire rope hoists are present. For example, in construction sites, it can lift steel, concrete, and other construction materials, and in mines, it can be used for hoisting ores and equipment. That is thanks to its high operational efficiency, low maintenance costs, and high business rewards. Last month, our Mexican client bought an electric wire rope hoist from Dejun Company. They tell us that they need an electric hoist for their small-scale construction projects, and they need to lift material below 2 tons. After knowing their actual requirement, we confirmed the lifting height and travelling speed according to their factory area and the usage frequency. Finally, they ordered a 2-ton electric wire rope hoist from us. And now the hoist has finished production and shipped to Mexico. In Mexico, we have so many hoist clients and have received numerous good reviews from them. As you see, this client chose the 2 tons of lifting capacity. The capacity can be customized according to your needs. If you also plan to order a hoist from China, please send us your needs at any time!
| Item | Wire Rope Electric Hoist With 2 tons Capacity |
| Loading Capacity | 2 tons |
| Lifting Height | 6 meters (can be customized) |
| Lifting Speed | 13 m/min |
| Lifting Motor Power | 7.5 kw |
| Wire Diameter | 15 mm |
| Voltage | 220V 60HZ 3Phase |
| Working Class | M3 |
| Insulation Class | F |
| Protection class | IP44 |
| Working Temperature | -20℃~+45℃ |
| Package | Standard Wooden Case |

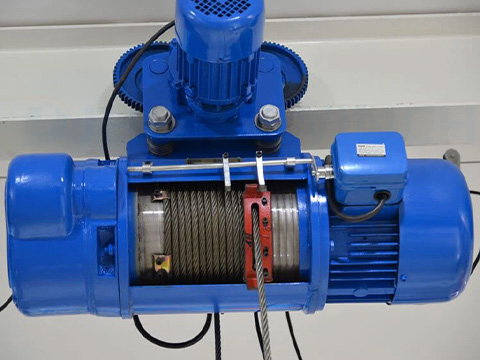

The 2-ton electric wire rope hoist is a light and small lifting device. It is mainly composed of an electric motor, transmission mechanism, drum, sprocket, etc. Its core function is to lift and horizontally move heavy objects through electric power. Here, "2 tons" refers to the rated lifting capacity of this wire rope electric hoist, meaning it can safely and stably lift objects with a maximum weight of 2 tons. This equipment has the advantages of compact structure, convenient operation, and simple maintenance. Therefore, it is widely used in various places where goods need to be frequently lifted and transported. The working principle of the 2-ton electric hoist is based on the power conversion of the electric motor. When the operator presses the control button, the electric motor starts and transmits power to the drum or sprocket through the transmission mechanism. The drum or sprocket begins to rotate, driving the wire rope or chain to move, thereby achieving the lifting and lowering of heavy objects. At the same time, the electric hoist is also equipped with a braking device to ensure that the heavy object can stably suspend in the air when the operation stops, avoiding safety accidents such as falling.
The typical application scenarios of 2-ton electric wire rope hoists include:
Equipment installation and relocation: Suitable for the positioning and installation of medium-sized machinery, with a single lifting capacity usually under 1.5 tons, leaving a safety margin.
Assembly line maintenance: In industries such as automotive manufacturing and food processing, it is frequently necessary to lift assembly line components. A two-ton hoist can meet over 90% of daily maintenance needs.
Container loading and unloading: When used in conjunction with I-beam tracks, it can quickly move goods weighing up to 2 tons or less.
Operations in high-rise warehouses: In warehouses with a shelf height of less than 8 meters, a 2-ton hoist is an economical alternative to forklifts, especially suitable for narrow spaces.
Steel structure assembly: Temporary lifting of high-rise building steel beams weighing 1-1.8 tons, which requires the use of mobile gantry cranes.
Material transportation: Vertical transportation of prefabricated concrete slabs, small steel components, etc., which is three times more efficient than manual handling.
Regarding the price of a 2-ton electric wire rope hoist, it usually depends on many factors, such as lifting height, lifting speed, running types, and other configurations. This Moxian client bought our electric wire rope hoists with the highest configuration, and spent nearly 3000 dollars total CFR price. Normally, many clients put the price in the first place. However, when purchasing an electric hoist, you should pay attention to aspects such as the brand, quality, and performance of the equipment. Choosing products from well-known hoist brands can ensure the quality and after-sales service of the equipment. At the same time, based on the actual usage requirements, select appropriate parameters such as lifting height and running speed. Moreover, if you want to know the price but do not know the specifications you require, please send us your usage environment and the material weight you lift. We will select a suitable hoist based on the information you provide.
During the operation, it is also very important to conduct regular maintenance and servicing of the electric hoist. For instance, it is necessary to regularly inspect the wear condition of the steel wire ropes and replace the severely worn ones in time. It is also necessary to lubricate the transmission components regularly to reduce wear and extend the service life of the equipment. Only by doing a good job in daily maintenance and servicing can the electric hoist always be in a good operating condition. For any questions, please feel free to contact us!
