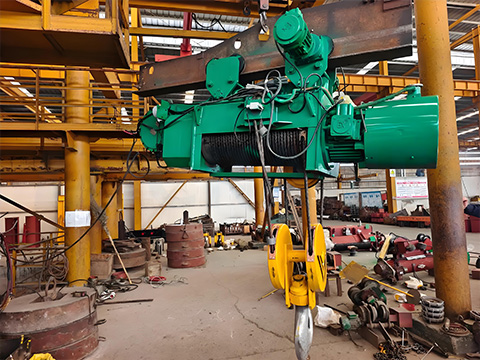

The 10-ton trolley-type wire rope electric hoist is lightweight and portable lifting equipment designed for large-tonnage lifting operations. It has the advantages of smooth operation and strong load-bearing capacity, and it can be widely applied in various heavy-load scenarios such as construction and factory transportation. Recently, a Bangladeshi customer ordered a running-type electric wire rope hoist with a 10-ton capacity from us. They mainly use the hoist to carry heavy objects at their workshop. Based on their requirements and investment budget, we recommended the electric wire rope hoist for them. Besides the electric trolley wire rope hoists, we also produce and sell fixed electric wire rope hoists, low headroom hoists, EX wire rope hoists, etc. For any needs, please feel free to contact us and get a competitive price!
| Item | 10 Ton Trolley Type Wire Rope Hoist |
| Model | CD |
| Lifting Height | 8 meters |
| Lift Speed | 7 m/min |
| Traveling Speed | 20 m/min |
| Power Supply | 380V 50HZ 3Phase |
| Protection Class | IP44 |
| Wire Diameter | 15 mm |
| Working Class | M3 |
| Working Temperature | -20℃ to +50℃ |
| Package | Standard wooden case |
1. Strong Heavy-Duty Performance: The 10-ton model achieves a lifting speed of approximately 7 m/min, with certain dual-speed models offering two-speed adjustment at 7/0.7 m/min. Lifting heights range from 6 to 30 meters. Equipped with high-power copper-core motors, the equipment effortlessly lifts 10-ton loads to elevated positions, ensuring smooth and stable operation, and it is ideal for frequent heavy-duty lifting tasks.
2. Lower Operating and Maintenance Costs: Powered by electricity, it requires no manual labor and produces no pollution during operation. With low operational complexity, it does not require specialized operators, helping companies reduce labor costs. Additionally, its components are highly standardized and interchangeable, enabling convenient maintenance and lower long-term total operating expenses.
3. Excellent Environmental Adaptability: The equipment demonstrates strong resistance to dust and mild corrosion, capable of stable operation under normal conditions ranging from -20°C to 40°C, relative humidity up to 85%, and altitudes below 1,000 meters. It is suitable for most outdoor workshops and open construction sites, with a maximum protection rating of IP54, providing effective dust and water resistance.

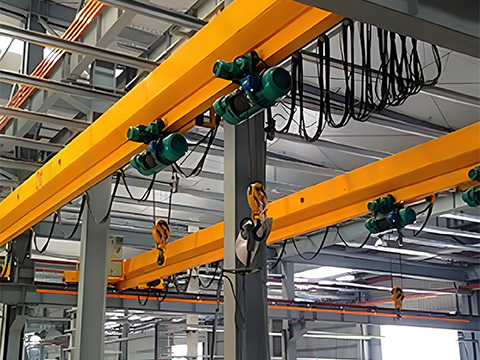

4. Flexible Installation and Compatibility: Featuring electric horizontal movement, it can be independently mounted on overhead I-beams or integrated with various cranes such as bridge cranes, jib cranes, and gantry cranes. It enables vertical, curved, and reciprocating lifting operations within the same plane, adapting easily to diverse track configurations.
1. Construction Industry: As a core lifting component paired with tower cranes, it handles vertical transportation of 10-ton building materials and structural components at high elevations on construction sites, making it an essential device for lifting heavy loads in construction projects.
2. Industrial Production Facilities: Widely used in factory assembly lines and warehouses, it supports heavy machinery installation and relocation, as well as handling and transfer of large-volume cargo. Ideal for continuous operations requiring high frequency and significant lifting heights.
3. General Heavy-Lifting Applications Across Industries: Suitable for use in freight yards, docks, power stations, logging sites, railways, and other settings, it performs loading/unloading and towing of medium-to-large loads. It also plays a key role in bridge construction, power infrastructure development, mining operations, and other foundational engineering projects, serving as an ideal lifting solution for diverse heavy-duty material handling scenarios.
The key difference between a trolley-type wire rope electric hoist and a fixed-type wire rope electric hoist lies in their horizontal movement capability. A fixed wire rope hoist can only perform vertical lifting at a single, fixed suspension point and cannot move left/right or forward/backward along the I-beam. In contrast, a running wire rope electric hoist is equipped with an electric trolley on top of the fixed model, enabling not only lifting and lowering of loads but also lateral or longitudinal movement along the I-beam for horizontal transportation. If your operation requires only vertical lifting at a fixed point without horizontal movement, a fixed hoist is sufficient and more cost-effective. However, if you need to transport heavy loads horizontally along a track from one location to another, the running hoist is the only suitable option.
At present, the hoist has been shipped to Bangladesh. As an experienced hoist manufacturer and supplier, we mainly produce and export electric chain hoists, wire rope hoists, air hoists, and stage hoists, etc. Our hoists have been sold to over 100 countries and regions all over the world. Welcome to contact us to get more details and visit our factory!
