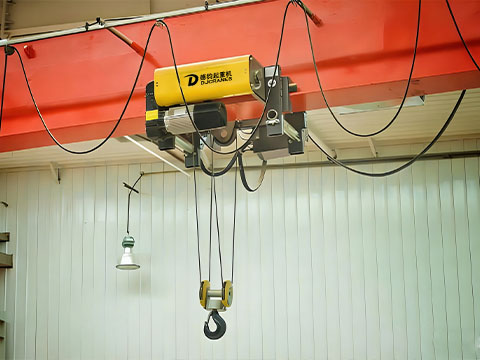

The European wire rope hoist is a high-end lifting equipment designed and manufactured with advanced European technology. It can often be installed on overhead cranes, gantry cranes, or jib cranes. Its core advantages are reflected in lightweight design, modularity, high energy efficiency, and high reliability.
| Item | 10 Ton European Wire Rope Hoist |
| Loading Capacity | 10 tons |
| Lifting Height | 30 meters |
| Lifting Speed | 1.1-6.8m/min(VFD) |
| Traveling Speed | 2-20m/min(VFD) |
| Lifting Power | 16KW |
| Working Class | A5(M5) |
| Protection Class | IP55 |
| Insulation Class | H |
| Power Supply | 440V 50HZ 3P |
| Operating Temperature | -20℃ ~ +50℃ |
| Payment | TT |
The 10-ton European steel wire rope hoist is based on the European lightweight and modular design concept and is manufactured in accordance with international standards such as DIN, FEM, and ISO. It adopts a compact design scheme with an optimized structural layout, usually directly connecting the motor, reducer, and drum, eliminating the traditional intermediate shaft, thereby enhancing the compactness of the overall structure. With a rated lifting capacity of 10 tons, it is a core lifting component for various industrial lifting and handling scenarios, including machining, steel production, and material distribution.
1. Compact structure, light weight, and low wheel pressure: It uses high-strength steel and an optimized square box structure. The compact design maximizes the utilization of factory space, reduces the demand for building clear height, and can cover a larger working range under the same factory conditions, reducing blind spots.
2. Modular design and high versatility: Key components such as motors, reducers, and brakes are produced using modular manufacturing processes, with high standardization and strong component interchangeability, facilitating flexible combinations, quick replacement, and maintenance, reducing downtime and spare parts inventory.
3. High energy efficiency and environmental friendliness: Equipped with high-efficiency motors and hard-toothed surface reducers, it achieves low energy consumption and high torque output. It generally adopts variable frequency speed control technology, ensuring smooth operation, stepless speed change, and precise positioning. Some models have a light-load high-speed function.
4. High reliability and long service life: It uses high-strength and high-flexibility high-quality steel wire ropes, combined with an optimized drum design, providing greater and safer pulling force and longer service life. High-precision automatic adjustment electromagnetic brakes ensure rapid, low-noise, and reliable braking. Key components such as gears are optimized to increase load capacity, ensuring smooth transmission and high efficiency.
5. Excellent hook assembly: It is often equipped with European hooks, with widened and thickened pull plates, and hook heads and crossbeams made by forging processes, ensuring high strength. It is also equipped with high-quality thrust bearings, providing flexible and safe use.

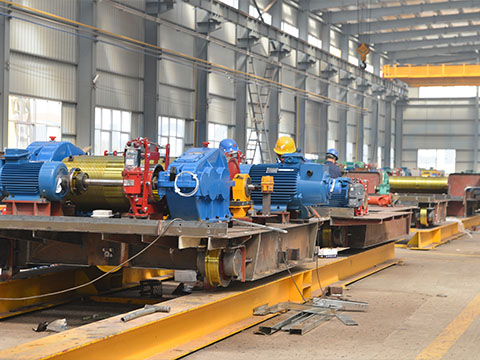

Dejun Industrial is a leading hoist manufacturer and supplier in China. We were established in 1984, and have over 40 years of experience in wire rope hoist production and sales. The electric European wire rope hoists are our main products. It has been sold to over 100 countries and regions all over the world. Besides the European wire rope hoists, we also produce and sell electric chain hoists, stage hoists, air hoists, etc. For any needs, please feel free to contact us!
In summary, the 10-ton European steel wire rope hoist, through advanced design concepts and manufacturing processes, significantly outperforms traditional products in terms of space utilization, operational efficiency, maintenance costs, and long-term reliability, providing an efficient solution for customers to save factory investment, improve production efficiency, reduce energy consumption, and lower maintenance costs.
