As essential lifting equipment, electric chain hoists play an irreplaceable role in heavy industry, construction engineering, and logistics. Last month, a Tanzanian customer ordered 2 sets of electric chain hoists for their steel structure factory. After knowing their working frequency, factory area, and application environment, they finally purchased the 10 ton electric chain hoists with trolley from us. Besides the steel structure factory, our electric chain hoist is also suitable for auto spare parts production lines, construction sites, warehouses, factory workshops, etc. If you want to order an electric chain hoist for a special need, please send us your requirements; we will send you a customized price.
| Item | 10 ton Electric Trolley Chain Hoist |
| Ordered Quantity | 2 sets |
| Operation Mode | Trolley Type |
| Lifting Height | 6 meters |
| Lifting Speed | 2.7 m/min |
| Lifting Motor Power | 3 kw*2 |
| Traveling Speed | 11 m/min |
| Traveling Motor Power | 0.75 KW |
| Chain Diameter | 11.2 mm |
| Chain Number | 4 fall |
| Voltage | 380V 50HZ 3Phase |
| Working Class | M3 |
| Protection Class | IP54 |

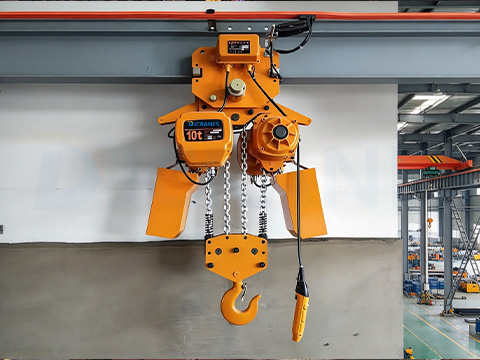

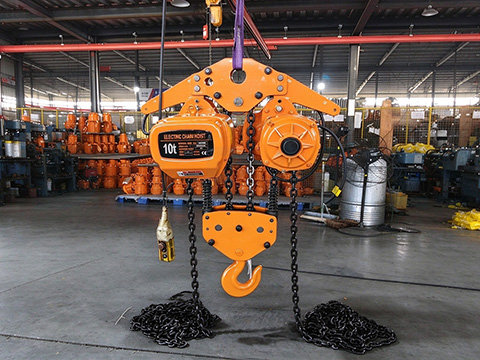

The 10 ton electric trolley chain hoist is a high-performance lifting device designed to meet heavy-duty lifting requirements. It is suitable for applications in metallurgy, engineering, mining, ports, and large-scale manufacturing. With a rated load capacity of 10 tons, it can easily lift and handle objects weighing up to 10,000 kilograms, making it widely used in industries such as large industrial plants, shipyards, mines, warehousing and logistics, and bridge construction. The hoist has the advantages of a compact structure, simple operation, convenient maintenance, and high efficiency. This trolley type electric chain hoist consists primarily of an electric motor, gear reduction unit, braking system, drive sprocket, and high-strength chain. The motor transmits power through the reducer to the sprocket, driving the chain into continuous motion to raise or lower heavy loads. The braking system ensures that the load remains securely locked during power failure or when operation stops, preventing unintended slippage. The high-strength chain is made of alloy steel and undergoes heat treatment and anti-corrosion processing, providing excellent wear resistance and tensile strength. Equipped with multiple safety protection features—including overload protection, mechanical travel limit switches, redundant braking systems, and thermal protection- the hoist can promptly cut off power or trigger alarms under abnormal conditions, significantly reducing the risk of accidents.
First, its exceptional load-bearing capacity enables efficient handling of large or densely packed loads, effectively improving production efficiency. Second, the equipment operates smoothly and quietly, minimizing interference in the working environment. Third, due to its high-efficiency motor and precision reducer, it consumes less energy and delivers stable output, extending the service life of the equipment. Additionally, from a safety standpoint, it features reliable electromagnetic brakes and limit protection devices, ensuring safe operation throughout use.

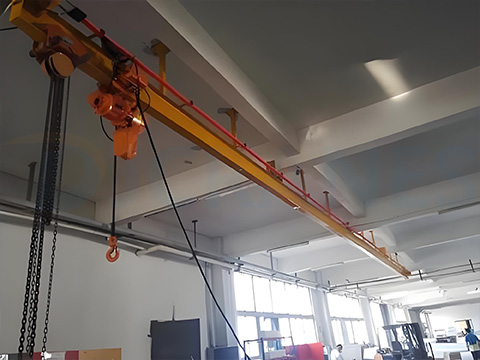

In steel structure factories, the 10-ton electric chain hoist is commonly used for lifting and installing large steel beams. In shipbuilding, it facilitates the assembly and transportation of hull components. In mining operations, it handles heavy machinery and ore. In warehousing, it efficiently moves bulk cargo, enhancing overall logistics performance. In bridge construction, this hoist assists in lifting prefabricated components, significantly shortening construction cycles.
When choosing a suitable 10-ton chain electric hoist, you should consider various factors such as lifting capacity, lifting height, working class, operating environment, power supply conditions, and installation method. Additionally, attention should be paid to the brand and manufacturing process. High-quality equipment not only has stable performance but also can reduce maintenance costs in the long run. For applications with frequent start-stop or continuous operation, a configuration with a higher working class and greater durability should be prioritized.
The price of 10-ton electric chain hoists varies significantly depending on the brand, configuration, and manufacturer. The reference price for a 10-ton chain electric hoist ranges roughly from 2,000 to 4,000 US dollars. For the same loading capacity, the higher the lifting height and the better the configuration, the higher the price. For example, there is a significant difference in price between the 10-ton 9-meter and 10-ton 12-meter specifications. Brands at the top level, such as Dejun, are slightly more expensive than economy brands, but Dejun has advantages such as national standard full-item inspection, dual braking, G80 high-standard chain, and complete qualifications for bidding. In addition, the larger the purchase volume, the lower the unit price, and we can provide a stepped quotation. If you want to know the price, please send us your requirements.
Due to its strong load-bearing capacity, reliable safety protection, and convenient maintenance features, the 10 ton trolley type electric chain hoist has become the preferred equipment for many heavy-duty applications. Besides the trolley type electric chain hoists, we also produce and sell fixed type electric chain hoists, low headroom chain hoists, air chain hoists, etc. For any needs, please feel free to contact us!
