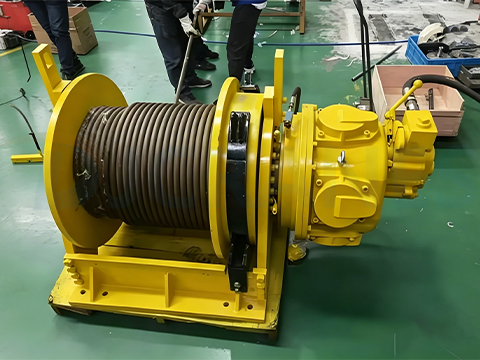

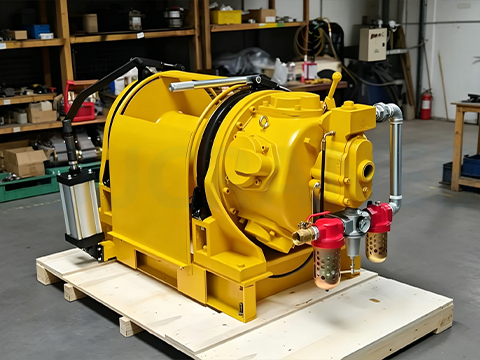

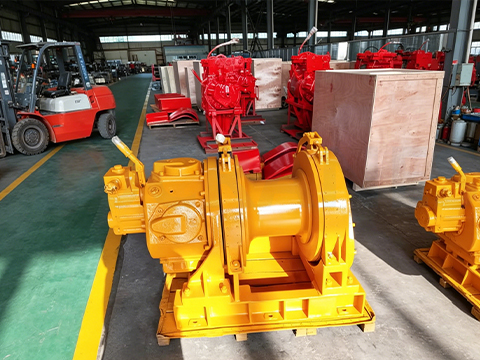

The air winch is a common type of lifting equipment, which is a mechanical device that uses a drum to wind steel wire ropes or chains to lift or pull heavy objects. It is widely used in fields such as construction, mining, ports, etc. Recently, A Singaporean customer ordered an air winch with a 10-ton capacity. The 10-ton pneumatic winch is an explosion-proof lifting equipment with a rated pulling force of 100 kN and a maximum lifting capacity of 10 tons. It is mainly used in environments prone to fire and explosion, or in harsh conditions, such as coal mines, offshore platforms, petrochemical plants, and ships. It operates by using compressed air as the power source for heavy-object traction and lifting tasks. We are an experienced winch manufacturer for 40 years. In addition to air winches, we also produce electric winches, air hoists, and related products. For any needs, please feel free to contact us!
| Item | 10 Tons Pneumatic Winch |
| Max. out layer lift force | 100 KN |
| Max. rope speed | 20 m/min |
| Max. air consumption | 25.6 m³ |
| Rated power | 30 KW |
| Rated air Pressure | 0.8Mpa |
| Diameter of wire | 24mm |
| Drum | capstan drum |
| Package | Standard wooden case |
1. Intrinsically safe explosion-proof: Utilizing compressed air as the power source eliminates the risk of electrical sparks from electrical equipment, enabling safe operation in flammable and explosive environments. It is suitable for special conditions such as oil drilling and underground coal mining.
2. Strong environmental adaptability: Naturally resistant to dust and liquid splashes, it can operate stably in harsh conditions, including dampness, high dust levels, and outdoor exposure. As a result, it is widely used in marine vessel operations, open-pit mining, and similar applications.
3. Excellent overload protection: The pneumatic system inherently features overload protection—when the load exceeds the rated value, the device automatically shuts down, preventing motor burnout and other failures, thus ensuring higher reliability.
4. Flexible speed control: Traction speed can be easily adjusted by regulating air pressure, offering fast response and adaptability to varying speed requirements across different operational scenarios.
1. Activate the pneumatic motor, and then the drive gear begins to rotate. Before starting, engage the brake band on the drum and release the brake lever on the large gear so that the drum remains stationary while only the large internal gear rotates.
2. To start the drum, fully release the brake band on the drum and then tighten the brake band on the large internal gear. At this point, the drum will rotate and begin winding the wire rope for operation.
3. During operation, if you need to temporarily stop the winch, release the brake band on the large internal gear and then engage the brake band on the drum.
4. When starting the electric motor, never apply both brakes simultaneously, as this may cause the motor to burn out.
5. The temperature of the drum brake band and bearings on the pneumatic winch must not exceed 70°C. If the temperature rises sharply, stop the machine immediately and inspect it.
6. To prevent dust ingress and oil leakage, ensure that the sealing devices on the pneumatic winch are intact and undamaged.
7. For safe operation, before starting, check whether the wire rope end is securely fastened, examine the internal transmission structure for any damage or jamming, and verify that internal components show no excessive wear. Only start the machine after confirming all conditions are satisfactory.
The 10-ton air winch is a highly practical lifting device suitable for medium-load operations. A suitable pneumatic winch will improve your working efficiency and save on running costs. Therefore, if you want to purchase a lifting winch, please let us know. We will customize it based on your needs! Also, you are welcome to visit our factory.
