The reduction of steel consumption is in line with the national policy guidance of low-carbon economy, energy conservation and emission reduction. In addition to huge social benefits, it also provides customers with reliable, guaranteed and transformable multi-functional equipment, which greatly reduces the procurement cost of enterprises.
Operation method:

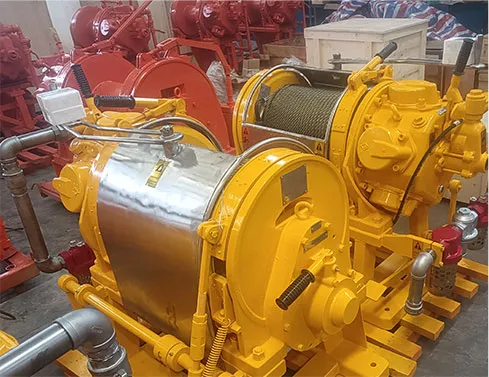

XJFH series air winch is a winch device which is powered by air motor and drives reel through gear reduction mechanism to achieve heavy traction and lifting. It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth running, stepless speed change and so on. As an explosion-proof traction, it is especially suitable for oilfield, geological drilling, mining and explosive, flammable gas and other places.
| ASSEMBLED | Depth | Width | Height | Weight |
| DIMENSIONS | 180cm | 110cm | 240cm | 203kg |
| DIMENSIONS | 180cm | 110cm | 240cm | 203kg |
XJFH-5/35KZP Automatic Rope Winch
XJFH-5/35KZP type automatic rope winch is a winch with automatic rope winch mechanism newly developed by our company, which solves the worldwide problem that automatic rope winch is easy to mess up rope when working.
Automatic rope winch can be used as an explosion-proof traction, lifting power device, especially suitable for oil fields, geological drilling, mining and flammable, explosive gas places.
Use area: Available on platform surfaces and catwalks.
Operation mode: manual, portable remote control.
Product parameters:
| ASSEMBLED | Depth | Width | Height | Weight |
| DIMENSIONS | 180cm | 110cm | 240cm | 203kg |
| DIMENSIONS | 180cm | 110cm | 240cm | 203kg |
Maintenance of pneumatic winch:
Lubricating oil
① In a 7-day cycle, add lubricating oil to the gas motor regularly, and often screw down the oil plug, and often screw down the oil plug, check whether the lubricating oil deteriorates, if found metamorphic or mixed with water should be replaced immediately;
② Every day need to check the oil mist lubricants, found no should immediately add enough;
Lubricating oil
① In a 7-day cycle, add lubricating oil to the gas motor regularly, and often screw down the oil plug, and often screw down the oil plug, check whether the lubricating oil deteriorates, if found metamorphic or mixed with water should be replaced immediately;
② Every day need to check the oil mist lubricants, found no should immediately add enough;
Lubricating oil
① In a 7-day cycle, add lubricating oil to the gas motor regularly, and often screw down the oil plug, and often screw down the oil plug, check whether the lubricating oil deteriorates, if found metamorphic or mixed with water should be replaced immediately;
② Every day need to check the oil mist lubricants, found no should immediately add enough;
Sealing of pneumatic winch
② Dehydrate 2 liters of filtered L-DAG46 compressor oil (that is, heat it to 110~150°C until the foam completely disappears). Pour about 1.5 liters of the dehydrated compressor oil into the gas motor and let it turn to fill the gas motor with oil.
It can be maintained for one year by the above method, and should be sealed up again after the deadline.
Sealing of pneumatic winch
② Dehydrate 2 liters of filtered L-DAG46 compressor oil (that is, heat it to 110~150°C until the foam completely disappears). Pour about 1.5 liters of the dehydrated compressor oil into the gas motor and let it turn to fill the gas motor with oil.
It can be maintained for one year by the above method, and should be sealed up again after the deadline.
FAQ
Q: How do you guarantee the quality of your products?
① At present, the certifications have been passed: API certification by the American Petroleum Institute, MA (KA) certification of mineral products safety mark, product type approval by China Classification Society (CCS), ABS certification, DNV certification and so on
Looking forward to hearing from you
Contact us for any information you need or for a quote, you can contact our sales team directly or complete the form below, we will reply you promptly.
